Description

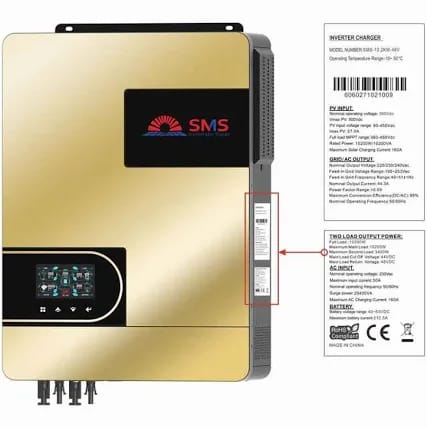

The SMS-6.2KVA 48V Hybrid Inverter delivers 6200W of backup power, keeping your appliances running smoothly. It also features a built-in 120A solar charger, allowing you to harness clean energy from the sun and potentially reduce your electricity dependence. Power essential appliances and even run additional devices on a separate circuit with the flexible dual load outputs. Keep your refrigerator, lights, and essential electronics powered during outages with the SMS-6.2KVA Hybrid Inverter. The 6200W of backup power can handle high-wattage appliances like refrigerators (up to 1000W), washing machines (up to 1800W), dishwashers (up to 1500W), and even some well pumps (depending on startup wattage).
Operating Temperature Range: -10°C to +50°C
• Model Number: SMS-6.2KW-48V
• Made in China
• PV Input (Solar Input):
• Nominal Operating Voltage: 240Vdc
• Maximum PV Voltage (Vmax PV): 500Vdc
• PV Input Voltage Range: 60Vdc to 450Vdc
• Maximum Input Current (Imax PV): 27A
• Full Load MPPT Range: 240Vdc to 450Vdc
• Rated Power: 8200W
• Maximum Solar Charging Current: 120A
Grid/AC Output (Utility Output):
• Nominal Output Voltage: Selectable 220Vac, 230Vac, or 240Vac
• Feed-in Grid Voltage Range: 195 Vac to 253 Vac
• Feed-in Grid Frequency Range: 49Hz to 51Hz ± 1Hz
• Nominal Output Current: 15.7A
• Power Factor Range: Greater than 0.99
• Maximum Conversion Efficiency (DC/AC): 97%
• Nominal Operating Frequency: 50Hz or 60Hz (selectable)
• AC Input (Grid Charging):
• Nominal Operating Voltage: 230Vac
• Maximum Input Current: 30A
• Nominal Operating Frequency: 50Hz or 60Hz (selectable)
• Surge Power: 7200VA
• Maximum AC Charging Current: 100A
• Battery Voltage Range: 20Vdc to 33Vdc
• Maximum Battery Current: 150A
